Description

Tough. Clean. Solid.

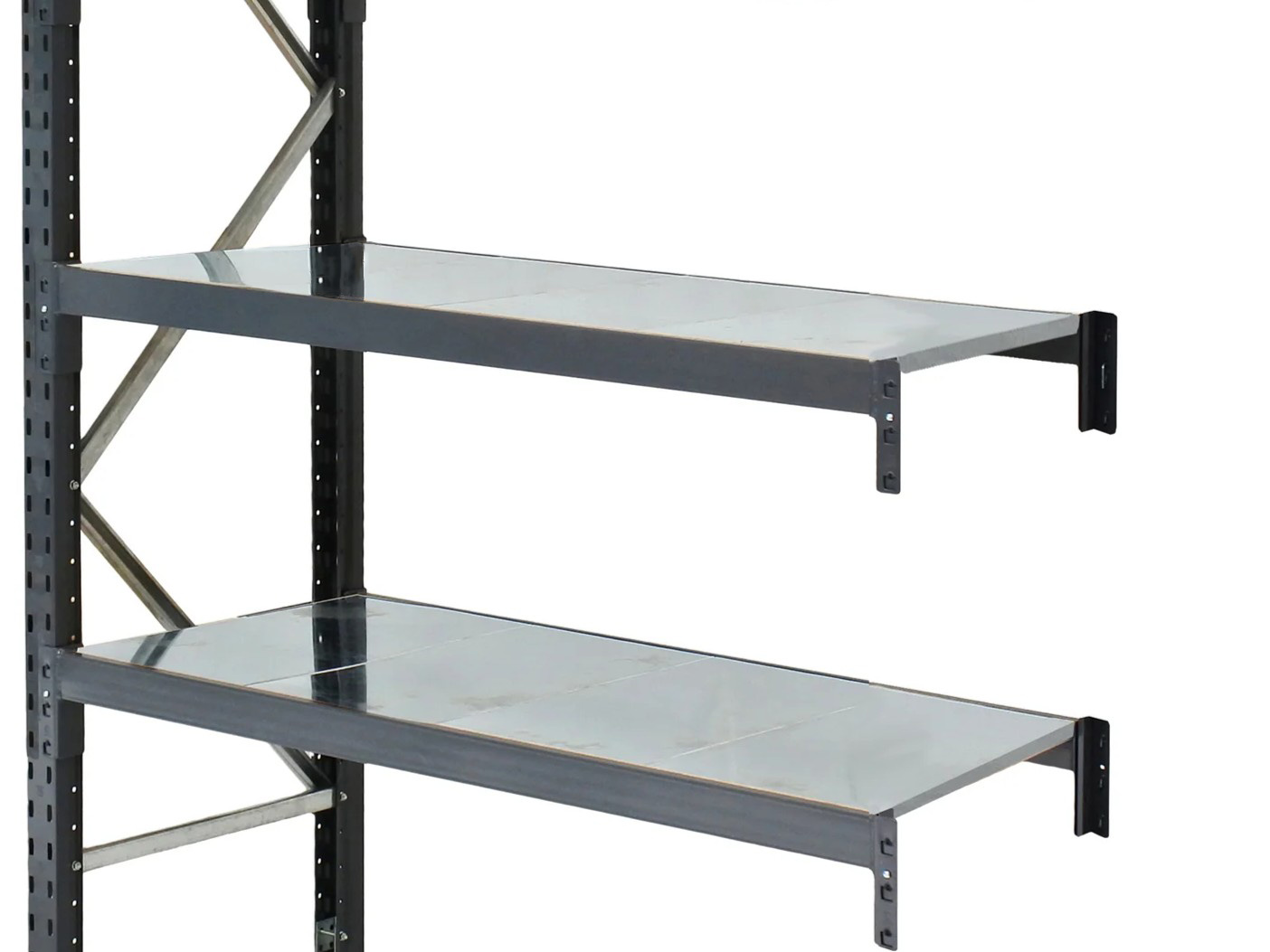

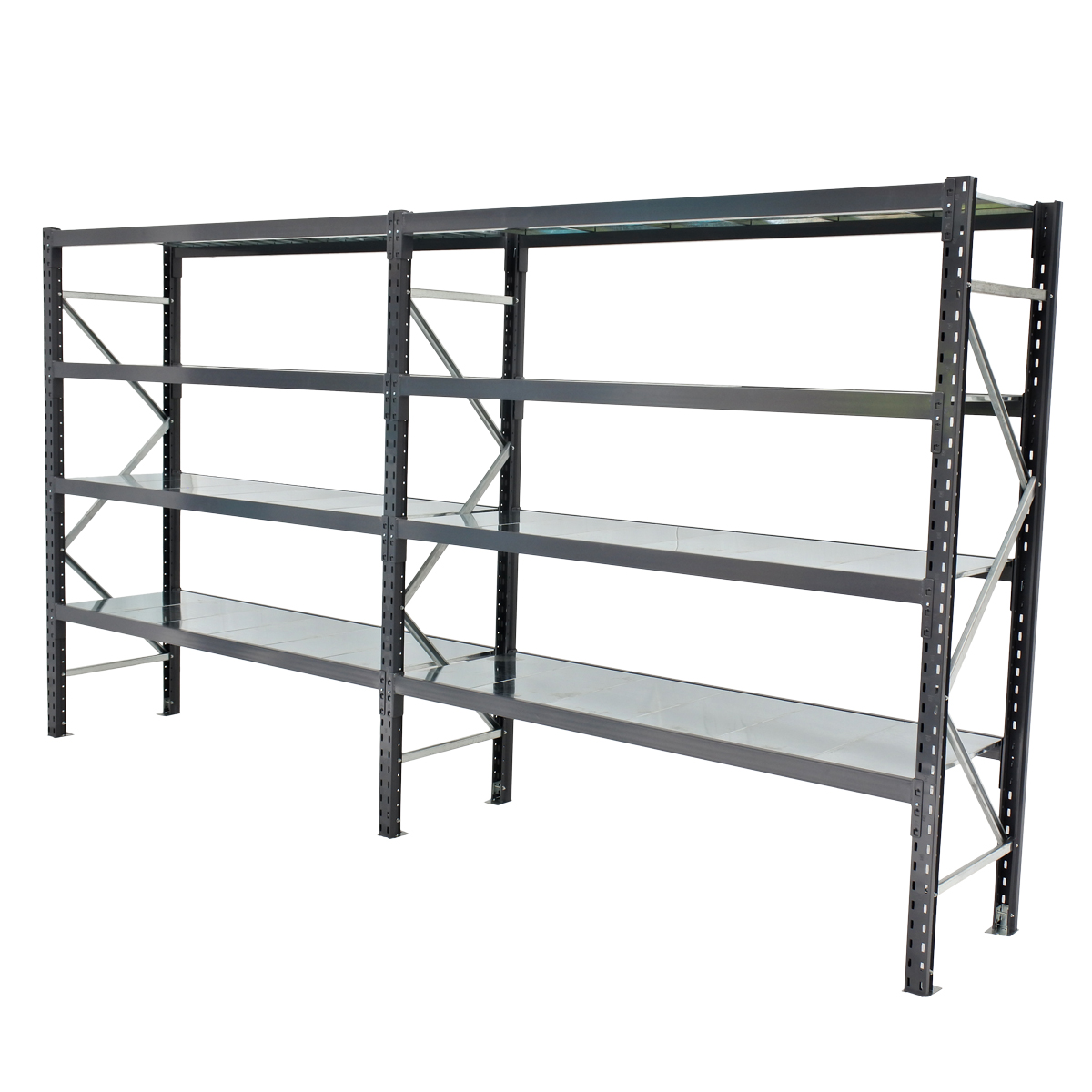

This 900D x 300mm galvanised deck is a corrosion-resistant steel insert for 900mm deep Apex Longspan shelving systems.
A clean, strong, and fire-safe alternative to chipboard, it’s ideal for deep bays, cool rooms, or hygiene-sensitive environments.

Why choose galvanised panels?

✅ Strong: Rated to 55kg UDL per panel
✅ Cleaner: No dust absorption, moisture resistance, easy to wipe
✅ Fire safer: Non-combustible, ideal for compliance
✅ Durable: Galvanised finish resists corrosion and wear
✅ Easy install: Drop-in panel, sits between beams with no tools

Perfect for food-grade storage, pharmaceuticals, deep carton picking, or warehouse areas needing cleanliness and fire performance.

🔧 Product Details

Attribute	Value
Nominal Size	900mm (D) x 300mm (L)
Actual Size	858mm (D) x 298mm (L) x 1.2mm thick
Depth Compatibility	Fits 900mm deep Longspan shelving only
Material	Galvanised steel
Load Rating (UDL)	55kg per panel
Installation	Drop-in – sits between beams

🧮 Gal Deck Panel Requirements by Beam Length

Each panel = 298mm wide.
Use this table to determine how many are required per shelf:

Beam Length	Panels Required	Total Capacity (55kg per panel)
900mm	3 panels	165 kg
1200mm	4 panels	220 kg
1500mm	5 panels	275 kg
1800mm	6 panels	330 kg
2100mm	7 panels	385 kg
2400mm	8 panels	440 kg

⚠️ Always confirm your beam rating supports the combined load. These galvanised panels drop in between the front and rear beams with no tools or trimming required.
